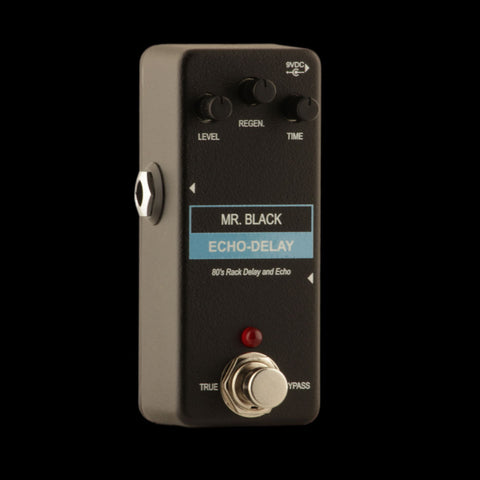

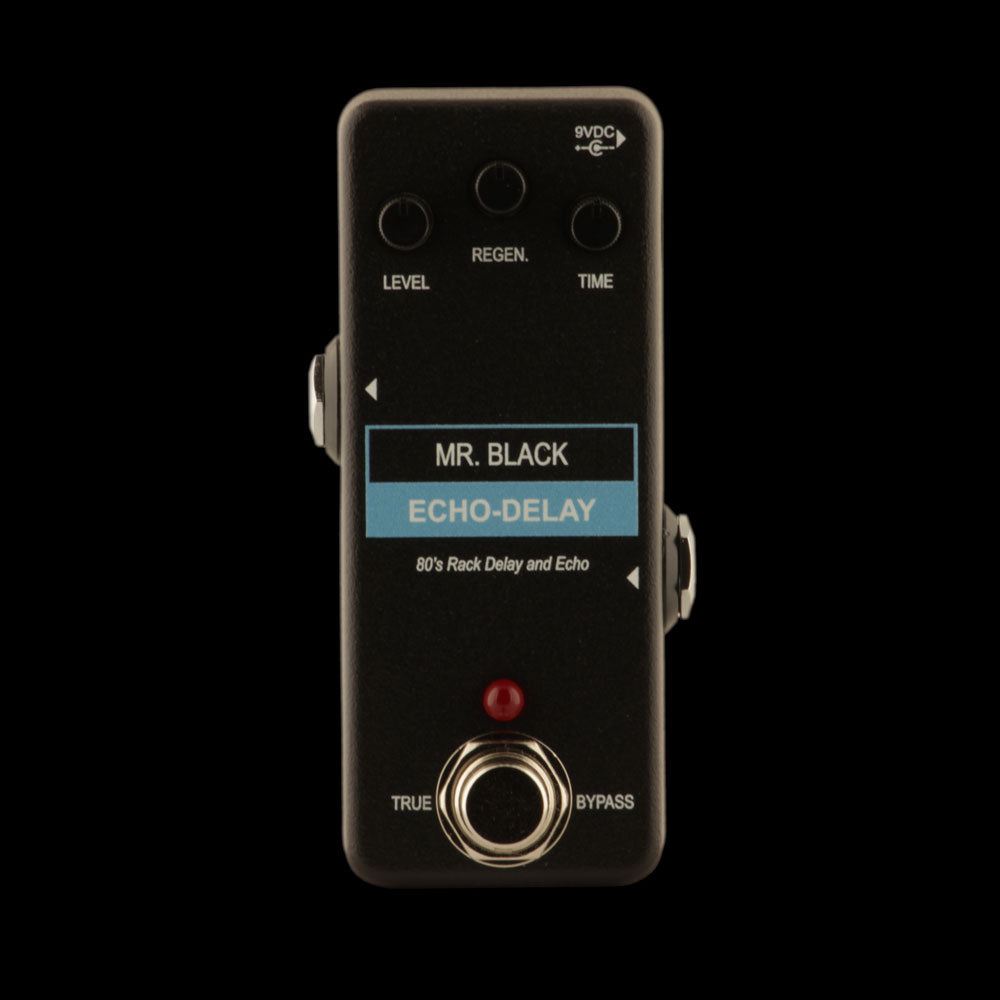

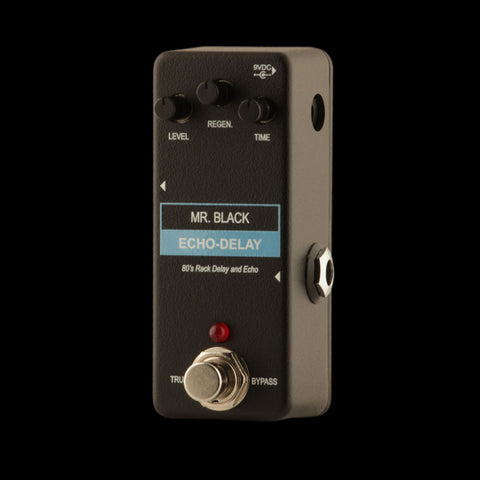

Designed to replicate the lush, clear echo tone that only digital rack delay units of the 1980's could produce, the Mini Echo-Delay includes gentle and dynamic modulation which adds and enhances to the rhythmic shimmering movement those units were famous for.
With self-cancelling oscillation on bypass, 80mS - 860mS delay time, and an ultra-compact footprint, you've got everything you need in a pint-sized, pedal-board friendly delay.
Handmade and built to last by real live humans, right here in Portland, Oregon using only premium parts for superior tone and years of dependable service.
PLEASE NOTE: THERE ARE NO USER SERVICEABLE PARTS INSIDE THESE UNITS. REMOVAL OF THE BACKING PLATE WILL VOID YOUR WARRANTY.
- Level (Echo volume level)
- Regen (Echo regeneration/repeats)
- Time (Echo time 80mS - 860mS)
- Input Impedance: ~500KΩ
- Output Impedance: ~2KΩ
- 9VDC 2.1mm negative center-pin power
- <60mA Current Draw
1.85"W x 3.7"L x 1.8"H
(47MM x 94MM x 46MM)
12 oz (340g)
