Mini Phaser

  • Sale
  • Regular price $139.95
  • 6 available


Evolved from the DNA of our coveted GilaMondo 8-stage phase-shifter, the Mini Phaser delivers the ooey-gooey swirling syrup only an 8-stage phase-shifter can.
Four additional delicately-engineered, one-way multi-network taps mimic the thickness and girth of up to 12-stages of phase-shifting pulse as the Enhance control is advanced, offering a wide array of phase tones spanning from light, airy-wiggle all the way to heavy, thick, vocal throb.

And Yes: it goes VERY slow.

Three simple controls and daisy-chain friendly "industry standard" 9VDC power let you ease a very versatile and high-quality phase-shifter into the tightest of pedal-boards!

Handmade and built to last by real live humans, right here in Portland, Oregon using only premium, high-grade, tight-tolerance parts for years of dependable service and downright superior tone.

PLEASE NOTE: THERE ARE NO USER SERVICEABLE PARTS INSIDE THESE UNITS. REMOVAL OF THE BACKING PLATE WILL VOID YOUR WARRANTY.

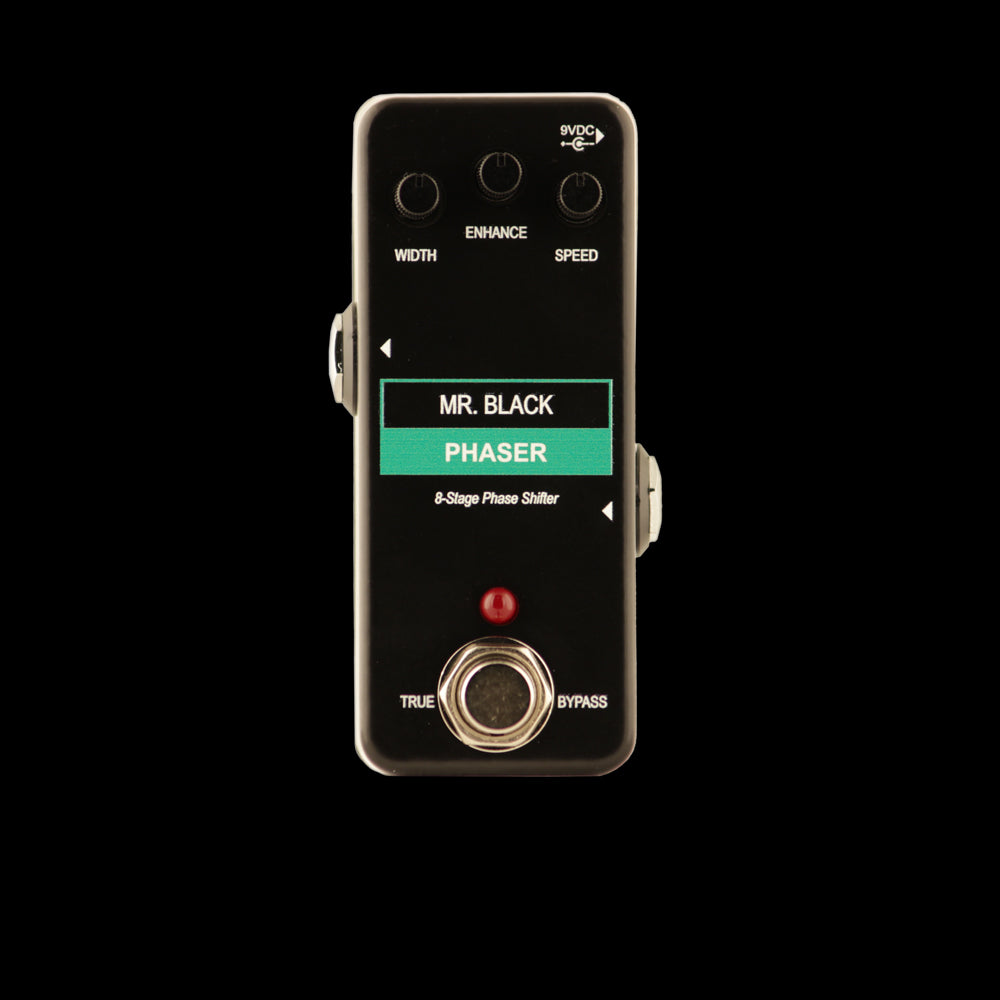

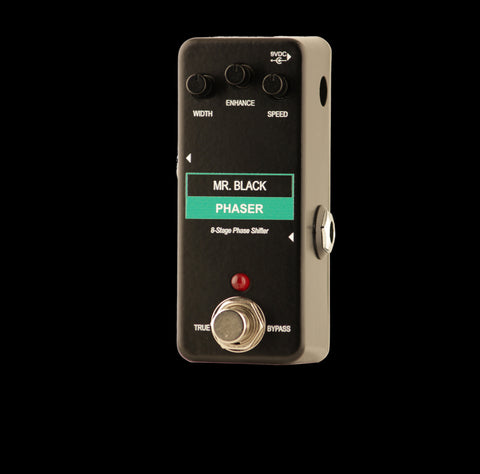

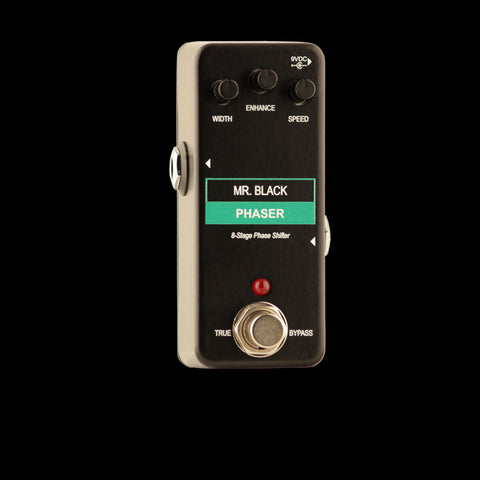

Controls:

  • Width (Oscillator sweep range)
  • Enhance (Active recycle/boost)
  • Speed (Oscillator speed)

Tech Specs:

  • True-Bypass
  • Input Impedance: ~500KΩ
  • Output Impedance: ~2KΩ
  • Current Draw:  <60mA
  • 9VDC 2.1mm negative center-pin power
  • Dimensions:
    1.85"W x 3.7"L x 1.8"H
    (47MM x 94MM x 46MM)
    12 oz (340g)
